Polycarboxylate Superplasticizer

HUAXUAN® PC-303E PCE Powder

Release time:2022-06-16 Author:Zhang Yujie

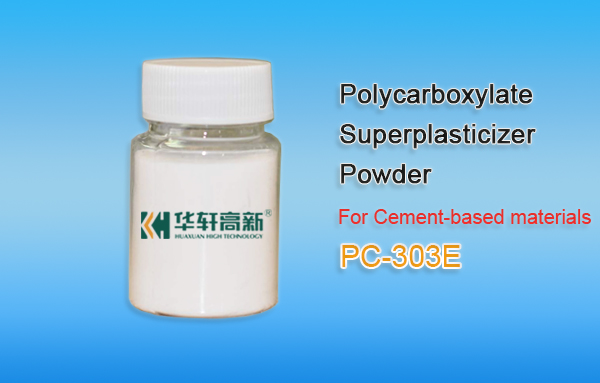

 PC-303E Polycarboxylate Superplasticizer Powder

(For Cement-based materials)

PC-303 is a powdered polycarboxylate superplasticizer made by polymerizing various organic high-molecular compounds through a special spray-drying process. It is a new generation of environmentally friendly water-reducing agent products with a high water reduction rate and high retention properties. It has good adaptability and dispersibility with various cement-based cementing materials, endows the material system with excellent workability, and simultaneously enables rapid and stable growth in strength.



Complies with The ASTM C 494 Norm

ASTM C 494, Type A and F



Advantages

·High Water Reduction Rate: With a low dosage, it possesses a high water reduction effect, suitable for adapting to a low water-cement ratio.

·High Plasticity Retention: Able to maintain the rheological properties of the material system for an extended period.

·High Compatibility: Has excellent adaptability with various cement-based systems and is well compatible with other functional additives.

·High Early and Late-ager strength: It exhibits excellent early-stage and later-stage strength.

·High Durability: It enhances the compactness of the hardened slurry, improves shrinkage and creep performance, reduces cracks, and improves durability.

·Eco Friendly: Does not contain harmful substances, safe and environmentally friendly.



Technical Data

PC-303E Main Specifications

NO

Test Item

Criterion

Detection result

1

Appearance and color

White or light yellow powder

White powder

2

Solid content (%)

≥95

98

3

Moisture content /%

≤5.0

1.6

4

Water reduction rate /%

≥25

32

5

Slurry fluidity (mm)

≥220

240

6

Fineness (0.3mm standard sieve residue)/%

≤15

5.0

7

Packing density /(g/cm3)

0.70±0.10

0.66

8

PH value (10% aqueous solution, 20℃)

6.0~8.0

6.5

9

Reinforcement corrosion

The presence of corrosion hazards should be indicated

No



Product application

PC-303E Cement Slurry Fluidity TestP.O42.5 Test

NO

Content/%

Added water/g

Fluidity/mm

60min fluidity/mm

1

0.05

87

150

140

2

0.10

87

200

190

3

0.15

87

250

245

4

0.20

87

300

300



PC-303E has excellent dispersibility and is suitable for various low water-cement ratio cementitious material systems. Such as in:

·Various cement mortars

·Various precast  concrete components and products

·Cement-based grouting materials, grouting materials, injection materials, etc.



Uses

1.Before use, PC-303E needs to be mixed evenly with other dry powder components. The construction mixing and application should be carried out according to the specific requirements of the different fields of application.

2.The recommended dosage of PC-303E is between 0.15% and 0.30% of the binders. The exact amount to be used should be determined by trial mixing based on the application system and variations in the dry-mix components.



Packaging & Shelf Life

1.Packaged in paper-plastic composite bags (25kg/bag), the shelf life is 12 months from the date of production. If the shelf life has expired, testing and verification must be carried out before use.

2.Store in a well-ventilated and dry place. Measures should be taken to prevent moisture. Avoiding direct sunlight.After opening, it should be used promptly. If not all of it is used, it should be sealed promptly to prevent it from absorbing moisture and becoming spoiled.
